API Operations for Automation Jobs

The request body specifies properties of the job to be created.

Job properties:

Property	Description
jobName	String. The name of the new job. It will identify the job in the product UI. This parameter cannot be an empty string.

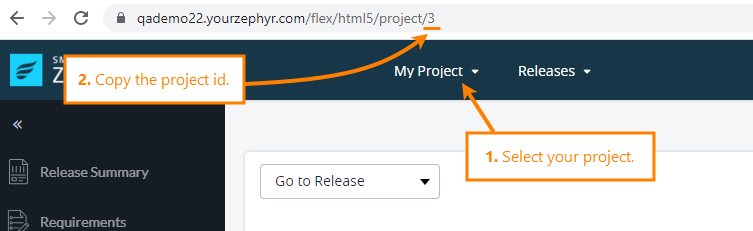

projectId	Integer. The new job will post the result to the project's identifiers. How to get the project ID: Log in to Zephyr, and select your project from the list at the top. You will see the projectID in the URL:

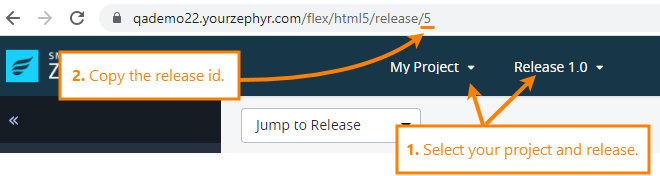

releaseId	Integer. The identifier of the release to which the new job will post the results. How to get the release ID: Log in to Zephyr and select your project and release from the drop-down lists at the top. You will see the release ID in the URL:
environment	This field specifies the environment in which the tests are executed or run. It is a mandatory option only if you have selected it in the Test Repository Configuration under Administration and Customization.
automatedFramework	String. The automation framework is to be used for the test run. Use the same values as the Automation Framework list in the product UI.
cycleName	String. The name of the cycle to be used.
phaseName	String. The cycle phase to be used for the run.
jobDetailTcrCatalogTreeId	Integer. Id of the test case repository item.
testRepositoryPath	The Zephyr test repository that contains the tests to be executed. Use the names as they are shown in the product UI. Separate levels with the > symbol, for example, "Release 1.0 > new".
cycleStartDateStr, cycleEndDateStr	Specifies the start and end dates of the cycle as strings in the mm/dd/yyyy format.
IsReuse	True or false. Specifies if the test engine will use the same cycle for all the automation runs (True) or if it will create a new cycle for each run (False).
assignResultsTo	Integer. The ID of the user to whom the test engine will assign results.

Example:

fileName: "result-file.xml"
automationJobDetail:{
"releaseId": 5,
"jobName": "Demo123",
"automationFramework": "junit",
"cycleName": "cycle",
"jobDetailTcrCatalogTreeId": 32,
"projectId": 9,
"testRepositoryPath": "Release 1.0 > new",
"cycleStartDateStr": "02/03/2022",
"cycleEndDateStr": "02/21/2022",
"isReuse": true,
"assignResultsTo": "1",
"environment": "qademo_mysql",
"phaseName": "new"
}

If the operation succeeded, the response has the 200 OK status, and the response body contains the created job properties. The id property is the job's identifier. You can use it later in operations to update job properties or delete a job.

Example:

{
"id":1,
"releaseId": 5,
"jobName": "Demo123",
"automationFramework": "junit",
"cycleName": "cycle",
"jobDetailTcrCatalogTreeId": 32,
"projectId": 9,
"testRepositoryPath": "Release 1.0 > new",
"cycleStartDateStr": "02/03/2022",
"cycleEndDateStr": "02/21/2022",
"isReuse": true,
"assignResultsTo": "1",
"environment": "qademo_mysql",
"phaseName": "new"
}

If the operation failed, it returns one of the error codes.

The request body contains an object with the IDs property and an array of job identifiers to be used for the run. You can find this identifier in the operation's response that created the automation job.

{"ids":[1, 2, 3]}

If the operation succeeds, the response code is 200 OK,  and the response body contains information on the scheduled run. The id property is the identifier of the run. You can use it later to check the job status, or to stop or cancel a job.

Example:

[
    {
        "id": 1,
        "status": "new",
        "jobScheduleDate": 1643879667503,
        "cycleDuration": 0
    }
]

If the operation fails, it returns an error code.

The request body specifies the created job's name, project, release, cycle, and other properties, which are the values described above.

Example:

fileName: "result-file.xml"
automationJobDetail:{
  "releaseId":11,
  "jobName": "Demo123111",
  "automationFramework": "junit",
  "cycleName": "cycle",
  "jobDetailTcrCatalogTreeId": 20,
  "projectId": 6,
  "testRepositoryPath": "Release 1.0 > new",
  "cycleEndDateStr": "02/21/2022",
  "cycleStartDateStr": "02/04/2022",
  "isReuse": true,
  "assignResultsTo": "1",
  "environment": "qademo_mysql",
  "phaseName": "new"
}

If the operation succeeds, the response status is 200 OK and the response body contains information on the scheduled run:

Example:

{
    "id": 20,
    "status": "new",
    "jobScheduleDate": 1643962371009,
    "cycleDuration": 0
}

If the operation fails, it returns an error code.

The request body is not used. The jobid parameter in the URL specifies the identifier of the job whose status you want to check. You get this identifier in the response to the operation that created the job.

If the operation succeeds, the response status is 200 OK , and the response body has information on the job and its cycle.

Example:

{
    "id": 1,
    "automationJobDetailId": 1,
    "status": "complete",
    "jobScheduleDate": 1643879667000,
    "cycleId": 4,
    "cycleDuration": 0
}

In case of an error, the operation returns one of the error codes.

The request body is not used. The ID parameter in the URL is the identifier of the scheduled run. You can find it in the response to the operation that scheduled the job run—it’s the object's ID property in the response body.

If the operation succeeds, the response status is 200 OK,  and the response body contains true.

If the operation fails, it returns one of the error codes.

The request body is not used. The jobid parameter in the URL specifies the identifier of the desired job. You get this identifier in a response to the operation that created the job.

If the operation succeeds, the response status is 200 OK, and the response body contains information on the specified job.

Example:

{
    "id": 1,
    "projectId": 5,
    "releaseId": 9,
    "automationFramework": "junit",
    "invokeScript": false,
    "jobCrationDate": 1643879564000,
    "createdBy": "test test",
    "cycleDuration": 18,
    "isTimeStamp": false,
    "createPackage": false,
    "assignResultsTo": 1,
    "cycleStartDate": 1643846400000,
    "cycleEndDate": 1645401600000,
    "cycleName": "cycle",
    "phaseName": "new",
    "isReuse": true,
    "jobName": "Demo123",
    "testRepositoryPath": "Release 1.0 > new",
    "jobDetailTcrCatalogTreeId": 32,
    "isDateStr": false,
    "jobSource": 2,
    "fileUplaodJobPath": "junit.xml",
    "userId": 7,
    "environment": "qademo_mysql",
    "timeStamp": false
}

If the operation fails, it returns an error code.

To specify new values of the job properties, you pass a JSON object in the request body. The id property of this object specifies the job to be updated. You can get this ID in response to the operation that created the automation job. Other properties of the object specify new values of the job properties. For information on the m, see above.

Example:

fileName: "result-file.xml"
automationJobDetail:{
  "id": 8, <-- job ID
  "releaseId": 18,
  "jobName": "Demo1",
  "automationFramework": "junit",
  "cycleName": "cycle",
  "jobDetailTcrCatalogTreeId": 34,
  "projectId": 7,
  "testRepositoryPath": "Release 1.0 > testrepo",
  "cycleEndDateStr": "02/21/2022",
  "cycleStartDateStr": "02/15/2022",
  "isReuse": true,
  "assignResultsTo": "1",
  "environment": "qademo_mysql",
  "phaseName": "testrepo"
}

If the operation succeeds, the response status is 200 OK, and the response body contains a JSON object with updated job properties.

If the operation fails, it returns an error code.

The request body is not used. The URL has the following parameters:

Parameter	Description
projectID	Integer. The Jira identifier of the desired project (not the project key). How to get the projectID: Log in to Zephyr, and select your project from the list at the top. You will see the project ID in the URL:
releaseID	Integer. The Jira identifier of the desired release in that project. How to get the releaseID: Log in to Zephyr and select your project and release from the drop-down lists at the top. You will see the releaseID in the URL:

If the operation succeeds, the response status is 200 OK, and the response body has a JSON array with information on all the jobs created for the specified project and release.

Example:

[
    {
        "id": 13,
        "projectId": 6,
        "releaseId": 11,
        "automationFramework": "junit",
        "status": "complete",
        "jobScheduleDate": 1643932800000,
        "createdBy": "Test Manager",
        "cycleStartDate": 1643932800000,
        "cycleEndDate": 1645401600000,
        "jobName": "Demo123111",
        "jobSource": 2,
        "jobDetailTcrCatalogTreeId": 20,
        "phaseName": "new",
        "testRepositoryPath": "Release 1.0 > new",
        "attachmentId": 190,
        "attachmentName": "TESTMapAttachment.xml"
    },
    {
        "id": 14,
        "projectId": 6,
        "releaseId": 11,
        "automationFramework": "junit",
        "status": "complete",
        "jobScheduleDate": 1643932800000,
        "createdBy": "Test Manager",
        "cycleStartDate": 1643932800000,
        "cycleEndDate": 1645401600000,
        "jobName": "Demo123111",
        "jobSource": 2,
        "jobDetailTcrCatalogTreeId": 20,
        "phaseName": "new",
        "testRepositoryPath": "Release 1.0 > new",
        "attachmentId": 191,
        "attachmentName": "TESTMapAttachment.xml"
    },
    {
        "id": 15,
        "projectId": 6,
        "releaseId": 11,
        "automationFramework": "junit",
        "status": "queued",
        "jobScheduleDate": 1643932800000,
        "createdBy": "Test Manager",
        "cycleStartDate": 1643932800000,
        "cycleEndDate": 1645401600000,
        "jobName": "Demo123111",
        "jobSource": 2,
        "jobDetailTcrCatalogTreeId": 20,
        "phaseName": "new",
        "testRepositoryPath": "Release 1.0 > new",
        "attachmentId": 192,
        "attachmentName": "TESTMapAttachment.xml"
    },
    {
        "id": 16,
        "projectId": 6,
        "releaseId": 11,
        "automationFramework": "junit",
        "status": "new",
        "jobScheduleDate": 1643932800000,
        "createdBy": "Test Manager",
        "cycleStartDate": 1643932800000,
        "cycleEndDate": 1645401600000,
        "jobName": "Demo123111",
        "jobSource": 2,
        "jobDetailTcrCatalogTreeId": 20,
        "phaseName": "new",
        "testRepositoryPath": "Release 1.0 > new",
        "attachmentId": 208,
        "attachmentName": "TESTMapAttachment.xml"
    },
    {
        "id": 17,
        "projectId": 6,
        "releaseId": 11,
        "automationFramework": "junit",
        "status": "new",
        "jobScheduleDate": 1643932800000,
        "createdBy": "Test Manager",
        "cycleStartDate": 1643932800000,
        "cycleEndDate": 1645401600000,
        "jobName": "Demo123111",
        "jobSource": 2,
        "jobDetailTcrCatalogTreeId": 20,
        "phaseName": "new",
        "testRepositoryPath": "Release 1.0 > new",
        "attachmentId": 209,
        "attachmentName": "TESTMapAttachment.xml"
    },
    {
        "id": 18,
        "projectId": 6,
        "releaseId": 11,
        "automationFramework": "junit",
        "status": "new",
        "jobScheduleDate": 1643932800000,
        "createdBy": "Test Manager",
        "cycleStartDate": 1643932800000,
        "cycleEndDate": 1645401600000,
        "jobName": "Demo123111",
        "jobSource": 2,
        "jobDetailTcrCatalogTreeId": 20,
        "phaseName": "new",
        "testRepositoryPath": "Release 1.0 > new",
        "attachmentId": 210,
        "attachmentName": "TESTMapAttachment.xml"
    },
    {
        "id": 19,
        "projectId": 6,
        "releaseId": 11,
        "automationFramework": "junit",
        "status": "new",
        "jobScheduleDate": 1643932800000,
        "createdBy": "Test Manager",
        "cycleStartDate": 1643932800000,
        "cycleEndDate": 1645401600000,
        "jobName": "Demo123111",
        "jobSource": 2,
        "jobDetailTcrCatalogTreeId": 20,
        "phaseName": "new",
        "testRepositoryPath": "Release 1.0 > new",
        "attachmentId": 211,
        "attachmentName": "TESTMapAttachment.xml"
    },
    {
        "id": 20,
        "projectId": 6,
        "releaseId": 11,
        "automationFramework": "junit",
        "status": "new",
        "jobScheduleDate": 1643932800000,
        "createdBy": "Test Manager",
        "cycleStartDate": 1643932800000,
        "cycleEndDate": 1645401600000,
        "jobName": "Demo123111",
        "jobSource": 2,
        "jobDetailTcrCatalogTreeId": 20,
        "phaseName": "new",
        "testRepositoryPath": "Release 1.0 > new",
        "attachmentId": 212,
        "attachmentName": "TESTMapAttachment.xml"
    },
    {
        "id": 21,
        "projectId": 6,
        "releaseId": 11,
        "automationFramework": "junit",
        "status": "new",
        "jobScheduleDate": 1643932800000,
        "createdBy": "Test Manager",
        "cycleStartDate": 1643932800000,
        "cycleEndDate": 1645401600000,
        "jobName": "Demo123111",
        "jobSource": 2,
        "jobDetailTcrCatalogTreeId": 20,
        "phaseName": "new",
        "testRepositoryPath": "Release 1.0 > new",
        "attachmentId": 213,
        "attachmentName": "TESTMapAttachment.xml"
    },
    {
        "id": 22,
        "projectId": 6,
        "releaseId": 11,
        "automationFramework": "junit",
        "status": "new",
        "jobScheduleDate": 1643932800000,
        "createdBy": "Test Manager",
        "cycleStartDate": 1643932800000,
        "cycleEndDate": 1645401600000,
        "jobName": "Demo123111",
        "jobSource": 2,
        "jobDetailTcrCatalogTreeId": 20,
        "phaseName": "new",
        "testRepositoryPath": "Release 1.0 > new",
        "attachmentId": 214,
        "attachmentName": "TESTMapAttachment.xml"
    },
    {
        "id": 23,
        "projectId": 6,
        "releaseId": 11,
        "automationFramework": "junit",
        "status": "new",
        "jobScheduleDate": 1643932800000,
        "createdBy": "Test Manager",
        "cycleStartDate": 1643932800000,
        "cycleEndDate": 1645401600000,
        "jobName": "Demo123111",
        "jobSource": 2,
        "jobDetailTcrCatalogTreeId": 20,
        "phaseName": "new",
        "testRepositoryPath": "Release 1.0 > new",
        "attachmentId": 215,
        "attachmentName": "TESTMapAttachment.xml"
    }
]

If the operation fails, it returns one of the error codes.

The request body contains identifiers of jobs to be deleted. These are identifiers you get for a job in response to the request that created that job:

{
  "ids": [
    1,
    2,
    3,
    ...
  ]
}

If you need to delete just one job, specify only one ID in the array, for example:

{
  "ids": [
    12
  ]
}

The operation returns 200 OK if the job or jobs have been deleted successfully. If an IIfan error occurs, it returns one of the error codes.
